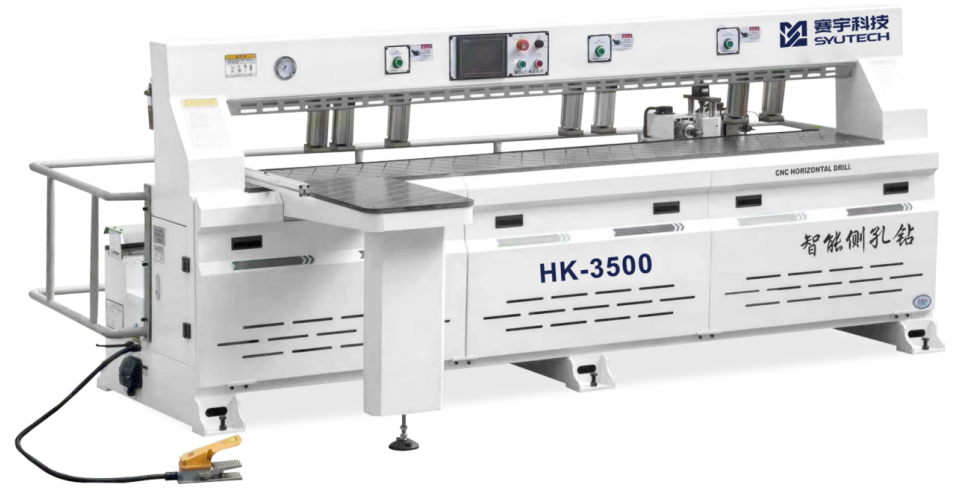

HK-3500 雙軸側孔機
Double axis side hole machine
高效化水平鉆，打孔銑槽一次完成！
可實現長短板切換，滿足多種板式家具工藝需求
Efficient horizontal drilling,drilling and groove milling completed in one go!
Capable of switching between long and short panels,meeting various panel furniture process requirements
?
?
技術參數
| 型號? | Model? | HK-3500 |
| X軸工作行程? | X-axis working stroke | 2800mm |
| Y軸工作行程? | Y-axis working stroke | 50mm |
| Z軸工作行程? ? | Z-axis working stroke | 50mm |
| 伺服電機 | servo motor? | 750kw*3 |
| 主軸? ?? | spindle outline | HQD 2*3.5kw |
| 外形尺寸 | dimension | 3600*1200*1400mm |
| 重量 | weight? | 約800kg |
| 臺面尺寸 | mesa dimension | 3000*100mm |
| 附臺 | accessory? | 400*600mm |
